Animal Feed Mixer Poultry Feed Mixing Machine
Basic Info
Model No.: SLJH-1000
Brand: HEXIE
Type: Mixing Equipment
Processing Technics: Crushing-before-Mixing
Condition: New
Additional Info
Packaging: Standard export wooden case
Transportation: Ocean,Land
Place of Origin: CHINA
Certificate: ISO9001
Port: GUANGZHOU,QINGDAO,SHANGHAI
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Product Description
Advantage
1. Drive with gear box with high efficiency;
2. Extended stainless steel conditioner with long conditioning and cooking time;
3. The bearings and oil seal at the main drive are imported, lubrication of bearing assured by reliable oil return;
4. we can equip the machine with ordinary modulator,thermal insulation case modulator or double-shaft differential;
5. modulator according to client's requirement.
SLJH-1000
1.type horizontal mixer is used to mix a variety of dry powder as proportion, and it can also be used in small and medium sized farms with feed unit.
2. This machine compose of machine shell, rotor, transmission parts and shedding mechanism and other components.
3. This machine has many features, such as simple and reasonable structure, easy maintenance, safe and reliable, high mixing evenness, short mixing time, small residue.

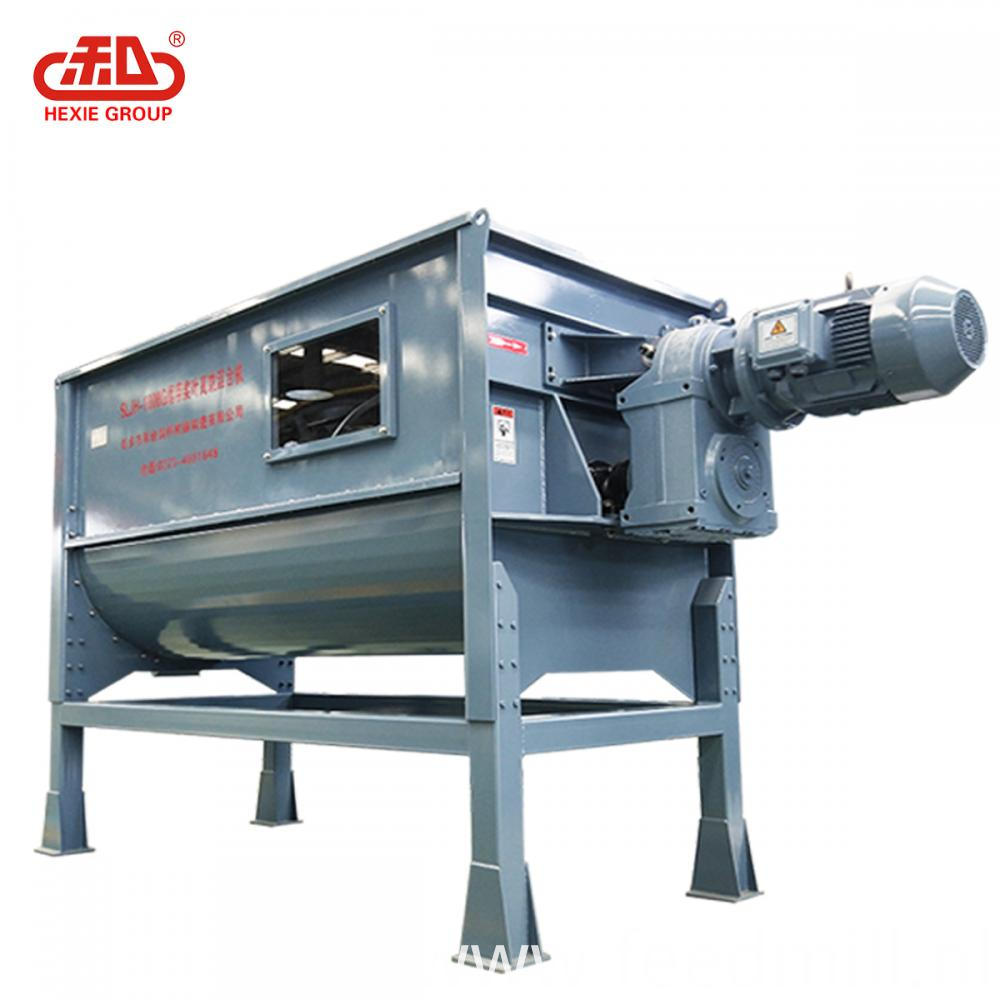

SLJH series high-efficiency Feed Mixer is a horizontal ribbon-type paddle feed mixer for mixing various proportions of dry powders. It can also be used as a feed unit for small and medium-sized farms. The main organic shell and rotor are used. The transmission part and the unloading mechanism are composed. The structure of the machine is simple and reasonable, convenient to maintain, safe and reliable, high mixing uniformity, short mixing time and small residual amount. The ribbon blade mixer is widely used in chemical, pharmaceutical, food, compound fertilizer, health care products, additives, aquaculture, bioengineering, powder and colloid mixing industries
SLJH ribbon feed mixer working function:
The materials of various components are metered into the mixer according to the formulation ratio, and the materials are mixed under the push of the spiral blades. The outer ribbon pushes the material from one end to the other, the inner blade moves the material in the opposite direction, the inner layer feed is pushed to one side and then rolls from the inside to the outside, and the outer layer is pushed to the other side. Rolling from the outside to the inside. During the convection process, the two materials are mixed and displaced to each other and mixed, and mixed during the tumbling process on both sides; in addition, the material is subjected to the complicated movement of the blade, which has both circular motion and axial direction. Movement, according to the composite motion state of the material, simultaneously produces a mixture of convection, shearing and diffusion, so that the material achieves a rapid and uniform mixing effect.
SLJH ribbon feed mixer specification:
Model | SLJH-1000G | SLJH-1000Q | SLJH-1000DQ |
rpm(r/min) | 40 | 40 | 40 |
Mixing time(min) | 3-5 | 3-5 | 3-5 |
Mixing evenness(cv%) | ≤5 | ≤5 | ≤5 |
Power(KW) | 11/15 | 11/15 | 11/15 |
Weight(kg) | 1900 | 1810 | 1730 |
Outline dimension(mm) | 3750x1250x2160 | 3650x1250x1550 | 3650x1250x1550 |
Product Categories : Mixing Equipment > Horizontal Type Mixer
