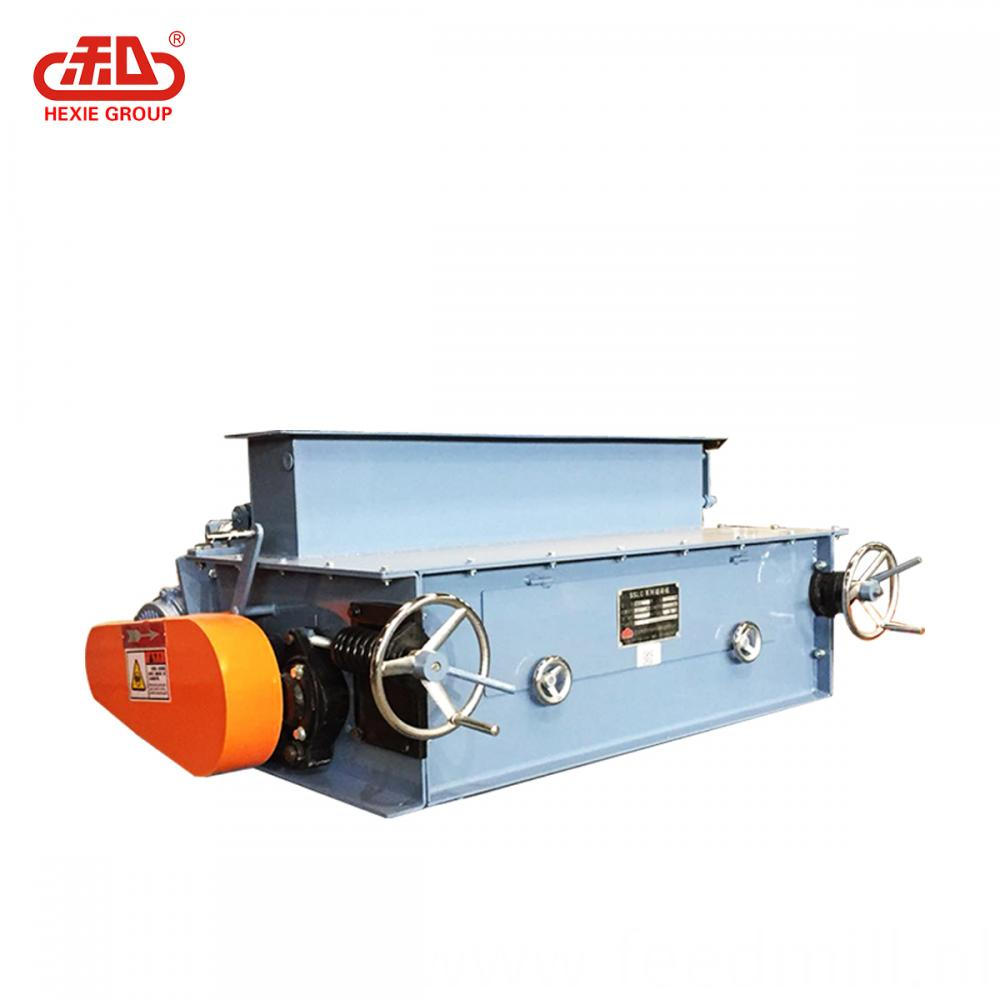

Animal Feed SSLG Series Roller Type Crumbler

Basic Info

Model No.SSLG20×170

BrandHEXIE

TypeForage Equipment

ConditionNew

Additional Info

PackagingStandard exporter wooden case

TransportationOcean,Land

Place of OriginCHINA

CertificateISO9001

PortGUANGZHOU,SHANGHAI,QINGDAO

Payment TypeL/C,T/T,D/P,Paypal,Money Gram,Western Union

IncotermFOB,CFR,CIF,EXW,FCA,CPT,CIP

Product Description

1.This series is special equipment to crush large pellets into small pellets.
2. Compact structure contributes to uniformly reduced particles size. The adjustment of the final size is convenient.
3. Being equipped with rollers running in differential speed can make the pellet materials are squeezed. Cut and tore between the two rollers, which produces perfect crushing effect.
4. The unique feeding hopper and bypass ancillary equipment play a role not only in refining, but also guiding the materials that do not need to be crushed to bypass stream, which can automatically shut down when the by pass flow through the trip switch .
5. Narrow V belt drive make sure smooth transmission, low noise, reliable running and easy operation.
6. 20x170 model is adopted with special roller distance adjustment mechanism.
7. If you want two roller, price will a little cheaper.


Model

 Power

(kw)


      Capacity

   (t/h)


      Quantity of roller


       Specification of roller

(mm)

Outside size(mm)

A

B

C

     SSLG15×80


    5.5

2-4

2

 150×800







      SSLG15×100


    7.5

3-6

2

  150×1000







      SSLG15×150


    7.5

 8-12

2/3

  150×1500







      SSLG20×170


   15

 8-12

2/3

  200×1700







      SSLG25×170

      18.5

   15-20

2/3

  250×1700






Roller type crumbler
