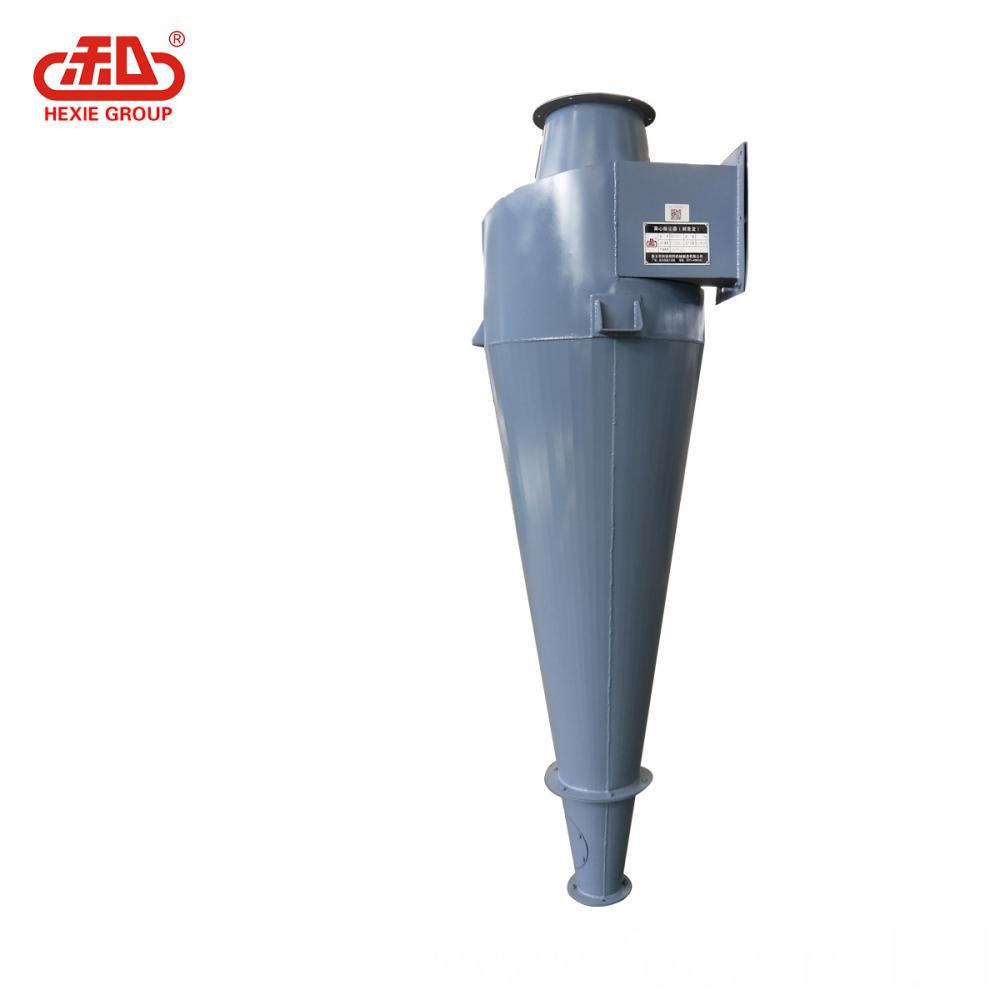

Animal Feed Centrifugal dust collector
Basic Info
Model No.: 50-800/1000/1200/1400/1800
Brand: HEXIE
Type: Forage Equipment
Condition: New
Applicable Materials Shape: Granular
Additional Info
Packaging: Sandard exporter with wooden case
Transportation: Ocean,Land
Place of Origin: CHINA
Certificate: ISO9001
Port: QINGDAO,SHANGHAI,GUANGZHOU
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Product Description
Cyclone Dust Separator often named after the cyclone weather phenomenon, are large funnel shaped sheet metal tubes connected to ducts often used in woodshops, machine shops, manufacturing plants, and powder processing plants. Dust and debris are sucked in at the top. Air containing fine dust blows out of the other side of the top, while chips and large dust particles fall out of the bottom into a drum or bin. Dusty exhaust air is either blown outside or filtered again using media filtration.
As the dirty air enters the cyclone dust collector, it is forced into a swirling movement. This results in a centrifugal force acting on the dust particles suspended in the air stream. The particles, denser than the air, are forced to move outwards, towards the cyclone dust collector wall. They then fall downwards, towards the dust exit. The clean air is eventually directed towards the centre of the cyclone and leaves through the gas exit.
Type | Outline dimensions(mm) |
50-600 |
|
50-800 | 800*800*2100 |
50-1000 | 900*1000*2600 |
50-1200 | 1200*1200*3200 |
50-1400 | 1400*1400*3500 |
50-1600 |
|
55-400 | 400*550*1000 |
55-600 | 600*600*2100 |
55-800 | 800*800*2800 |
55-1000 | 1000*1000*3500 |
55-1200 |
|
